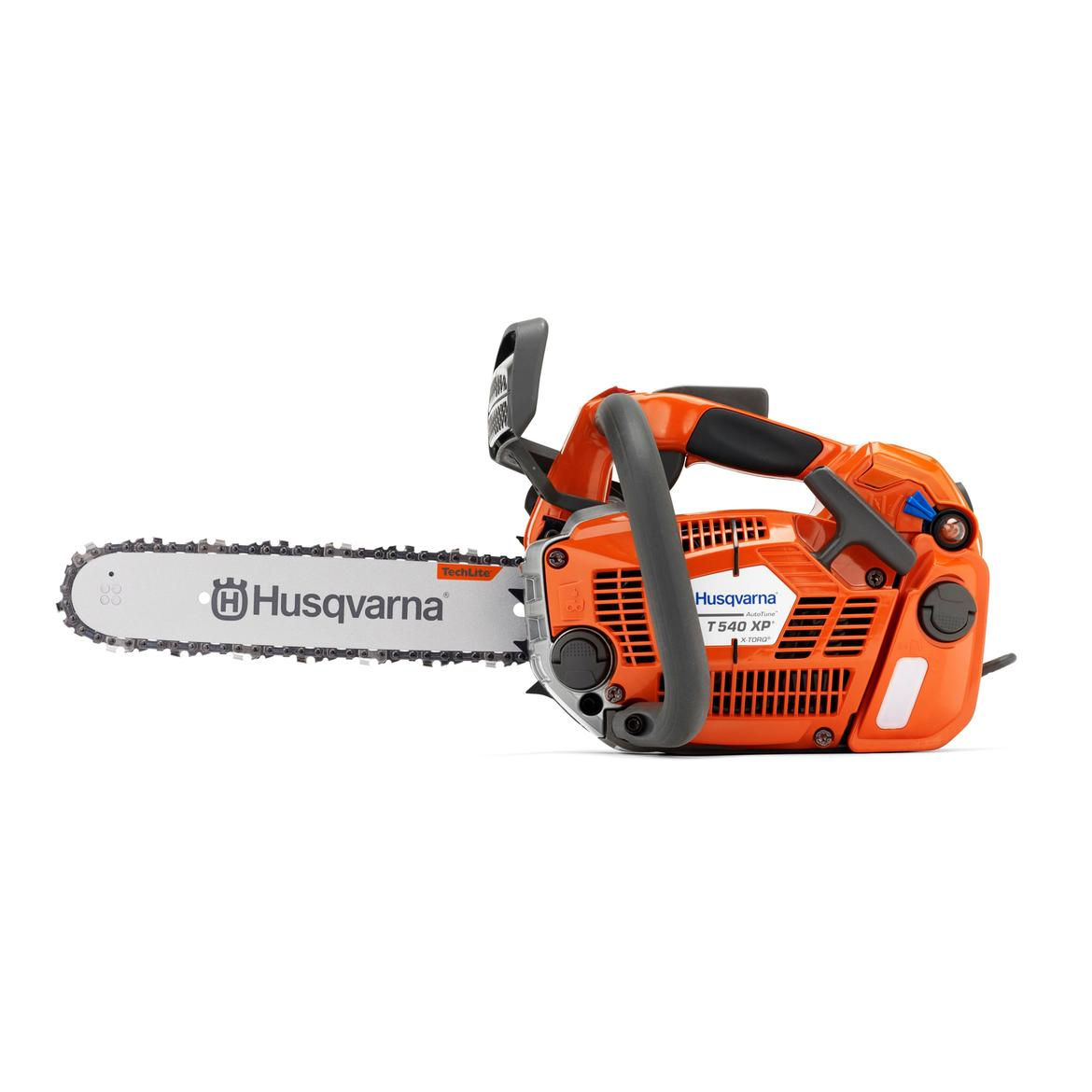

Husqvarna T540 XP®

Husqvarna T540 XP®

Husqvarna T540 XP® is designed for the high-end top handle saw segment, targeting professional customers like full pro arborists, landscapers, garden contractors and utility services who need excellent performance in combination with the best ergonomics.


Cylinder displacement

37.7 см³


Weight (excl. cutting equipment)

3.9 kg

  • AutoTune
    AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburetor adjustments. It compensates for different fuels, altitude, humidity, temperature, and clogged air filter.

    X-Torq ® engine
    Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.

    Individual Grip Size
    The top handle grip size can be set in three alternative sizes, to perfectly fit your hand.

    Belt eyelet
    It makes it quick and easy to connect the saw to the climbing harness.

    Tech Lite™
    The light and strong TechLite™ bar make the saw easier to maneuver. This bar is up to 18 % lighter compared to a conventional bar.

    Air Injection
    Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.

    Adjustable oil pump
    An adjustable oil pump makes it easy to set the chain lubrication according to your needs.

    Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.

    Quick release air filter
    Facilitates cleaning and replacement of the air filter.

    Side mounted chain tensioner
    Side-mounted chain tensioner makes chain adjustment quick and easy.

    Magnesium Crankcase
    Sturdily built crankcase withstands high RPM and tough professional use, ensuring a long service life.

  •  Engine:

    Power output

    1.8 kW

    Cylinder displacement

    37.7 см³

    Maximum power speed

    10200 rpm

    Max engine/motor RPM

    14200 rpm

    Idling speed

    3000 rpm

    Torque, max.

    1.83 Nm

    Torque, max. at rpm

    140 rpm

    Clutch engagement speed (±120)

    4500 rpm

    Fuel consumption

    464 g/kWh

    Fuel consumption

    0.87 kg/h

    Spark plug


    Electrode gap

    0.5 mm

    Ignition module air gap

    0.3 mm

    Oil pump type

    Adjustable flow

    Oil pump capacity Max

    9 ml/min

    Oil pump capacity Min

    3 ml/min

    Exhaust emissions (CO2 EU V)

    968 g/kWh[1]



    Bar length (inch) 12"
    Chain type H37
    Chain speed at max power 19.4 m/s
    Chain speed at 133% of maximum engine power speed 25.8 m/s
    Sprocket type

    Spur 6

    Bar mount Small

    Recommended bar length, max

    16 in

    Recommended bar length, min

    12 in




    Lubricant type

    Husqvarna 2 stroke or equiv. at 50:1

    Oil tank volume 0.2 l


     Sound and Vibration:

    Sound power level, guaranteed (LWA) 116 dB(A)
    Sound power level, measured 114 dB(A)
    Sound pressure level at operators ear 104 dB(A)

    Equivalent vibration level (ahv, eq) front handle

    3.5 m/s²

    Equivalent vibration level (ahv, eq) rear handle

    4.2 m/s²


    1. This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Fuel Type
Engine Size
Weight (excluding bar & chain)
Recommended Bar Length
